This blog has been written as a homework assignment for the Middle East Technical University 2025–2026 CENG 795 Special Topics: Advanced Ray Tracing course by Şükrü Çiriş. It aims to present my raytracer repository, which contains the code developed for the assignment.

Homework 2

Fixing Chinese Dragon Render

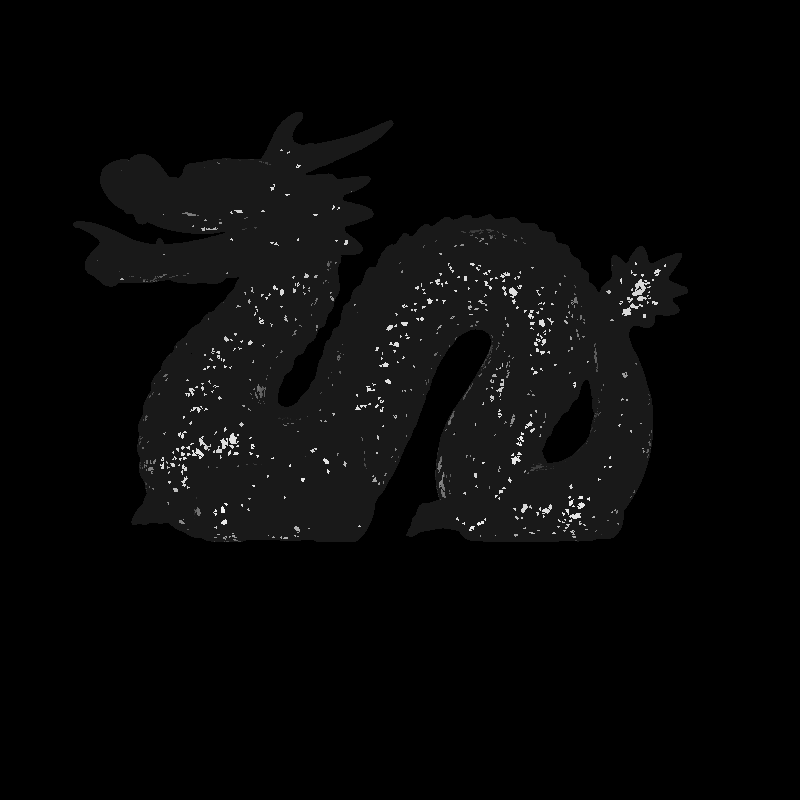

In homework 1, my render of the Chinese dragon was incorrect, as you can see below:



I realized that the broken render was caused by precision errors in my functions. My custom math library uses SSE4 instructions for vector math, so everything runs on 128-bit registers and uses floats. Each vector holds four floats, and all operations are done on all four components at once.

Using double would fix the issue, but doing that would require rewriting my entire math library from the ground up. One double is 64 bits, and four doubles take 256 bits of space, which SSE4 cannot handle. I would need to move to a newer instruction set like AVX, and that is a lot of work. I definitely do not want to rewrite the math library.

After thinking about it for a while, I found a simpler solution. I updated my triangle intersection function to scale the vertices by 1000 when calculating the ray intersection. With that change, I got this result:



Then I realized I had to do the same thing for the normal calculation of the triangles. I modified the triangle class constructor so it calculates the triangle normal using the vertices multiplied by 1000. With that change, I finally got the expected result:



I fixed the precision mistake without altering my math library.

Smooth Shading is Done

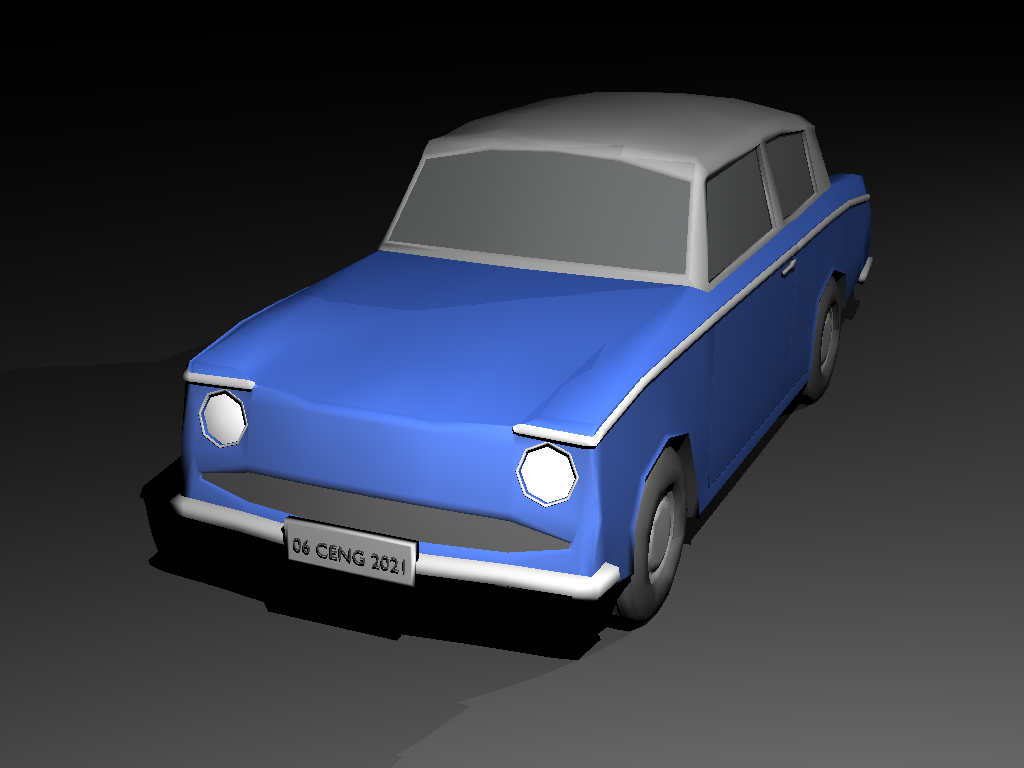

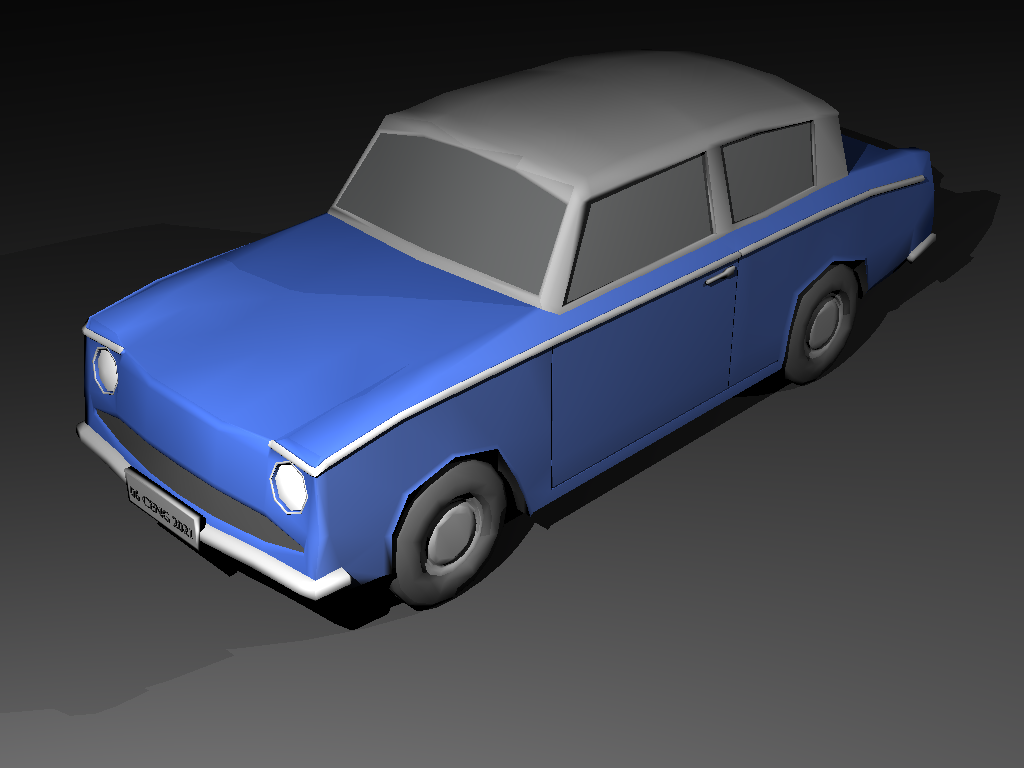

I also implemented the smooth shading feature. Here are some samples from homework 1 rendered with smooth shading:

Realizing Critical Bug in Grid Acceleration Structure

My grid acceleration structure creates voxels on the x, y, and z axes by heuristically counting them based on the world size and volume. Since my plane shape has an infinite AABB, this calculation was incorrect, and any scene containing a plane ended up running with a 1x1x1 grid. I fixed the issue by excluding plane shapes from the world size calculation and handling plane intersections separately. For example, the bunny_with_plane scene originally finished in 29733 ms. After fixing the bug, it now completes in 186 ms.

Newly Added Features For Homework 2

1. Transformations for shapes, lights, and cameras


2. Instancing


3. Refined grid acceleration structure


4. Converting numbered images to video by calling FFmpeg

Resulting Images and Videos

windmill

davids_camera_zoom

davids_camera

davids

Performance Results

The performance results shown below were measured on a PC with an i5-12400F processor and 16 GB of RAM. The program ran with 12 threads during the rendering phase, SIMD optimization was active, and a uniform grid acceleration structure was used. Since my program does not use the GPU, the GPU hardware is irrelevant. These results were obtained from a single run.

Scene	Json parse and prepare time (ms)	Render time (ms)	Save image time (ms)

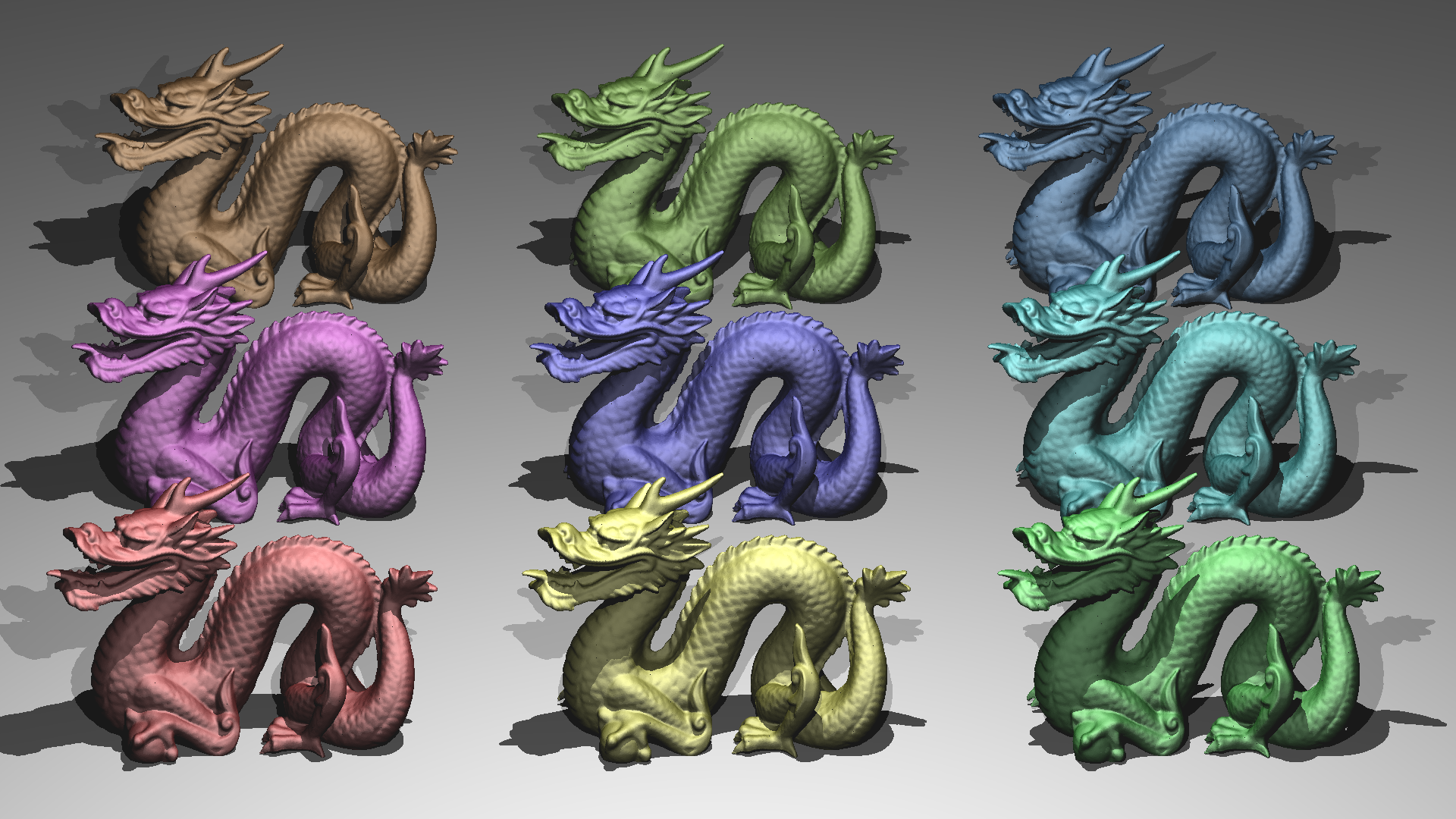

marching_dragons.png	1604	69150	164

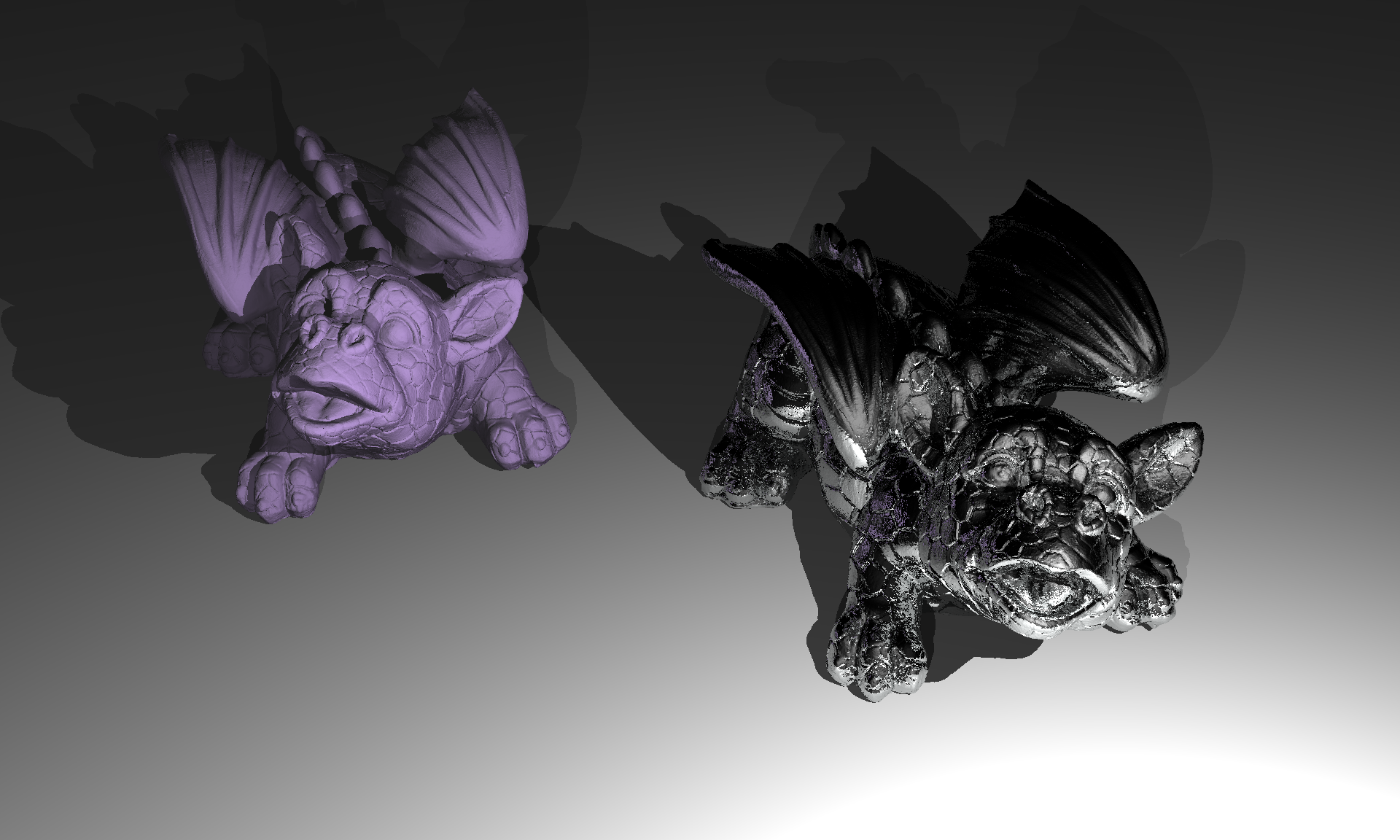

dragon_metal.png	1513	13393	111

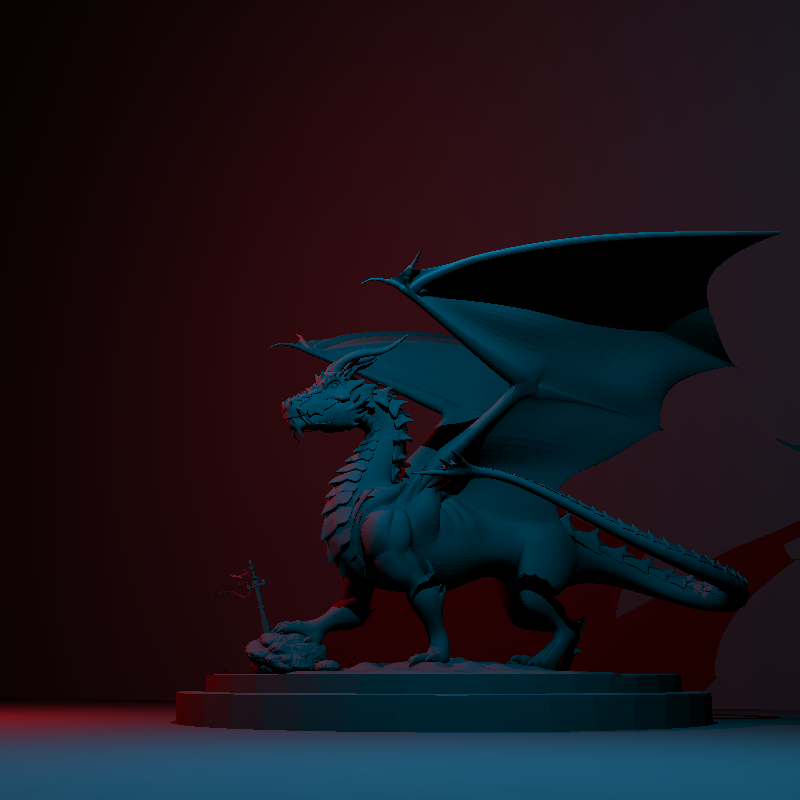

dragon_new_right.png	239	25846	32

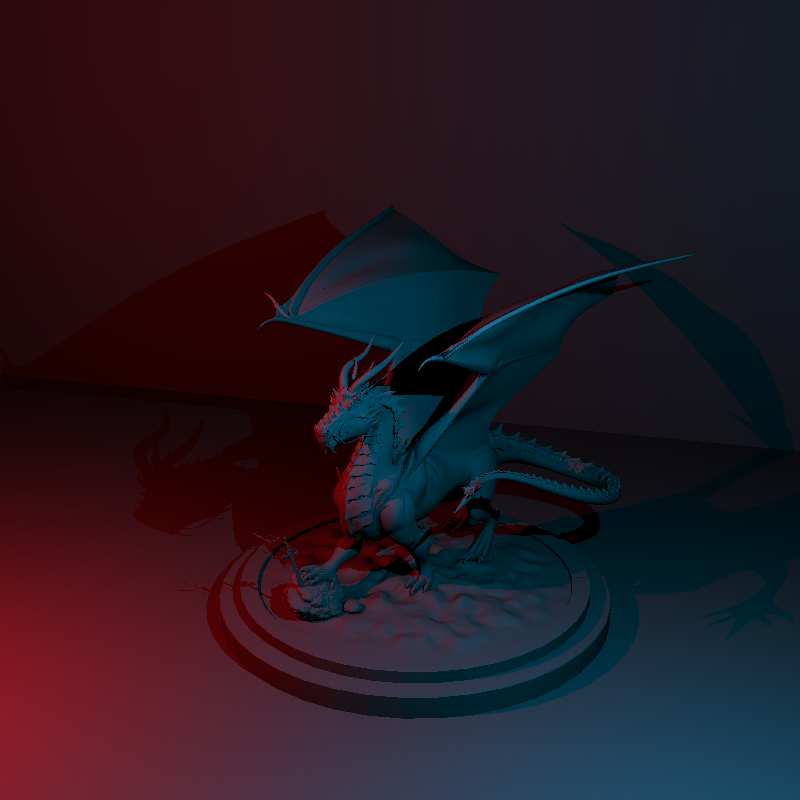

dragon_new_top.png	247	57517	39

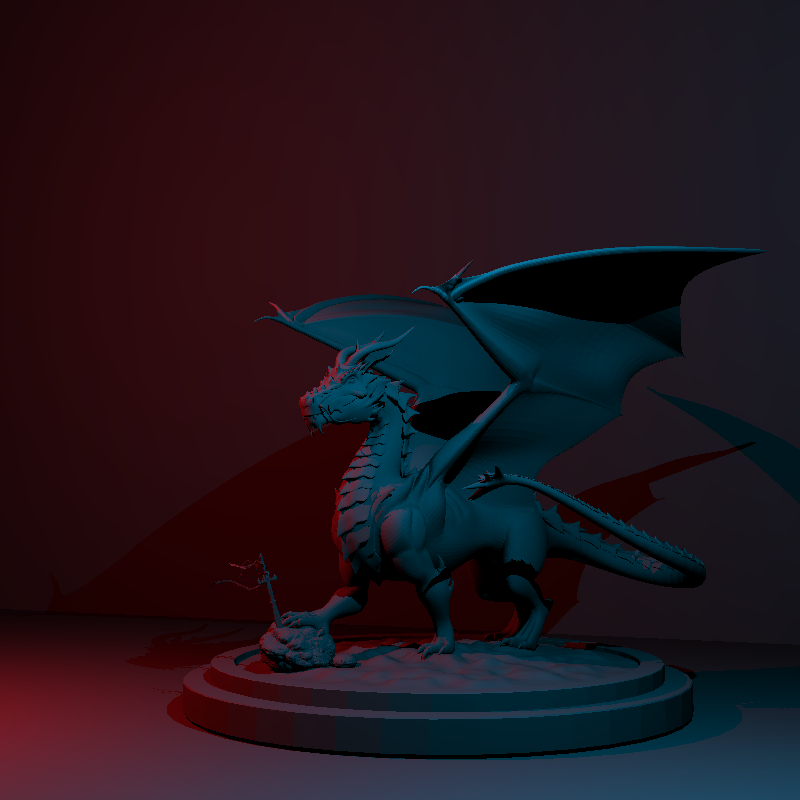

dragon_new.png	261	10777	34

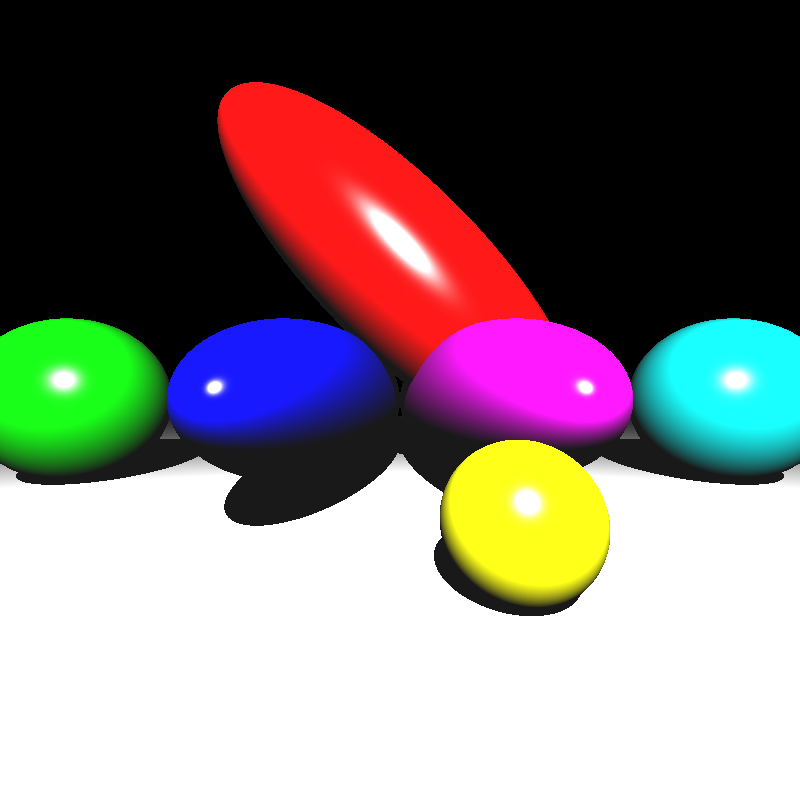

ellipsoids.png	15	91	24
glaring_davids.png	502	4747	40
grass_desert.png	103	306749	107

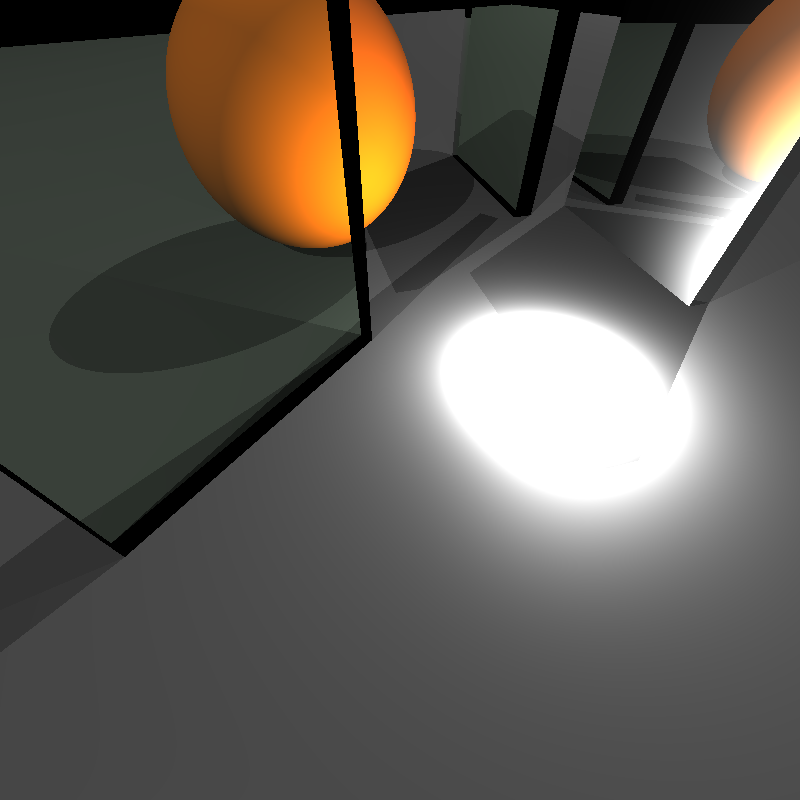

metal_glass_plates.png	20	2044	26

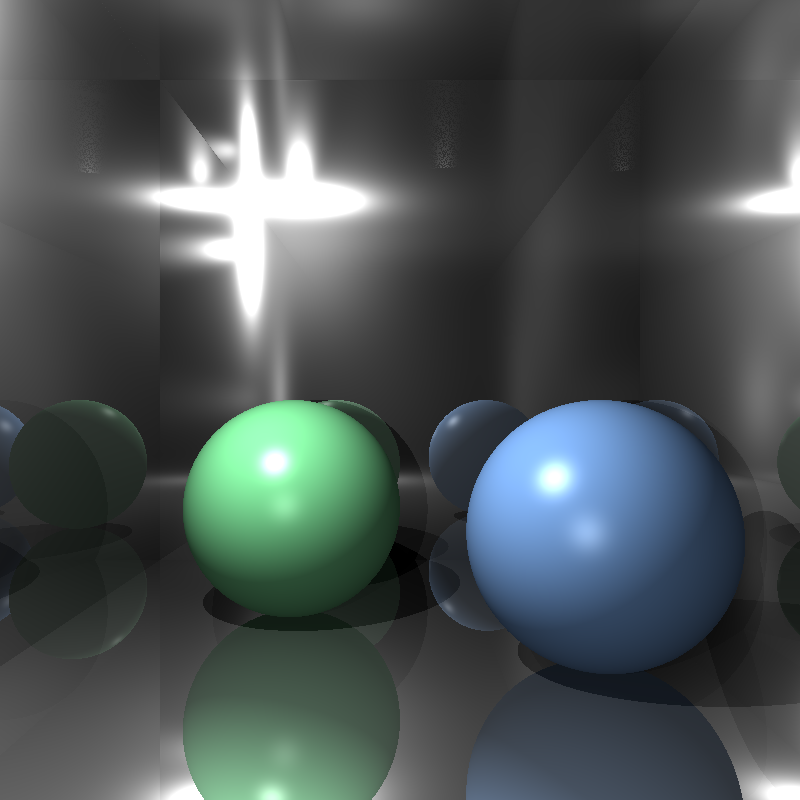

mirror_room.png	19	223	42

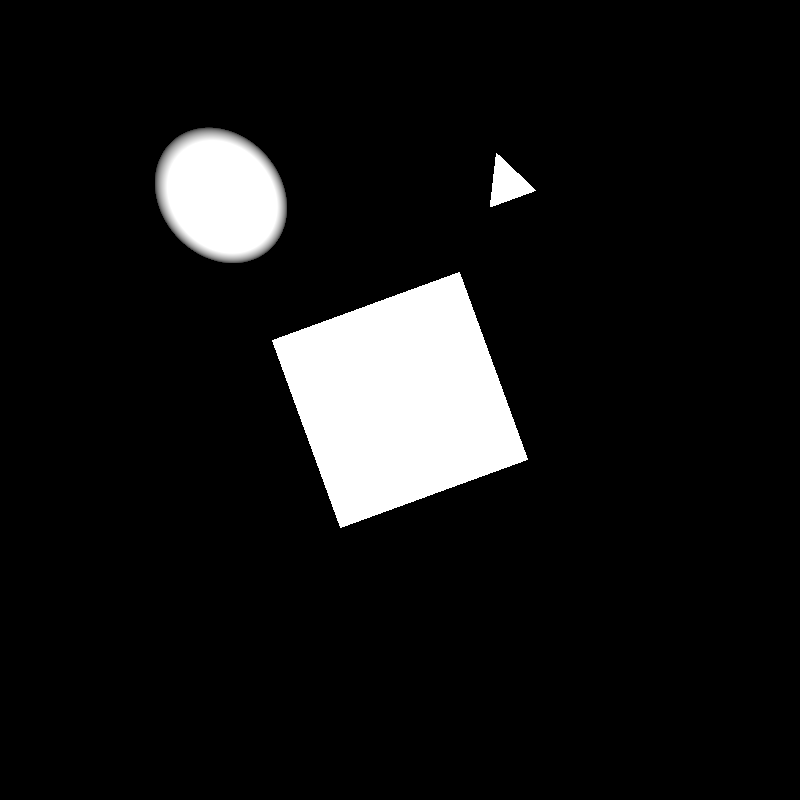

simple_transform.png	20	54	29
spheres.png	20	67	29

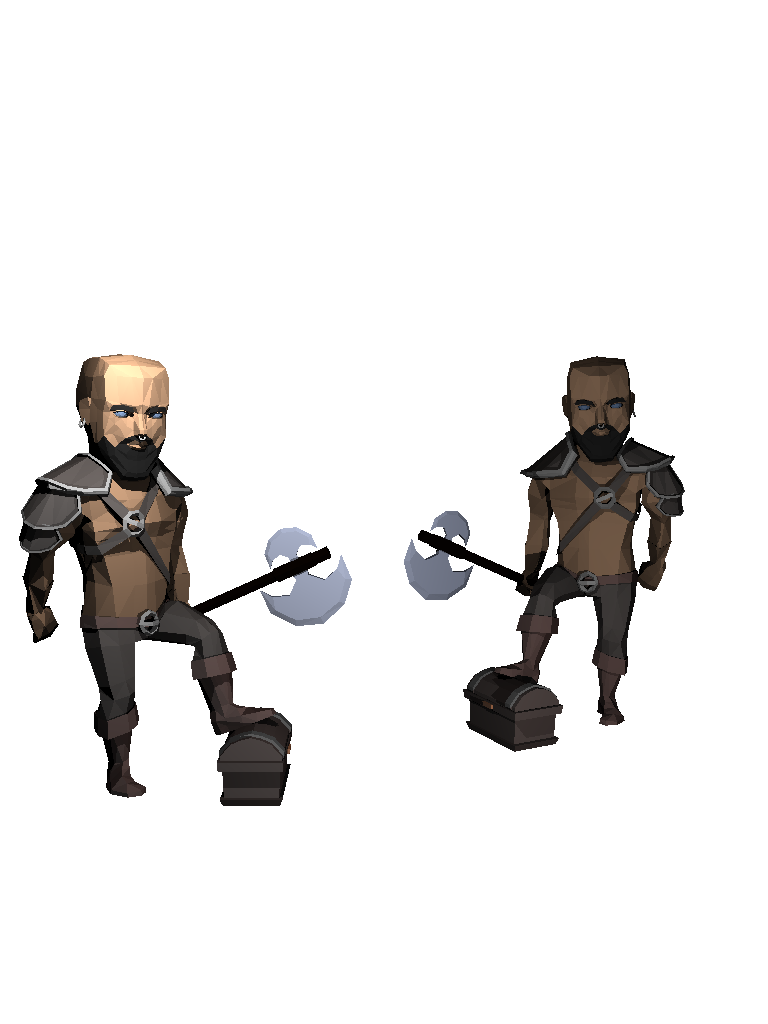

two_berserkers.png	134	238	36

Self-Critique

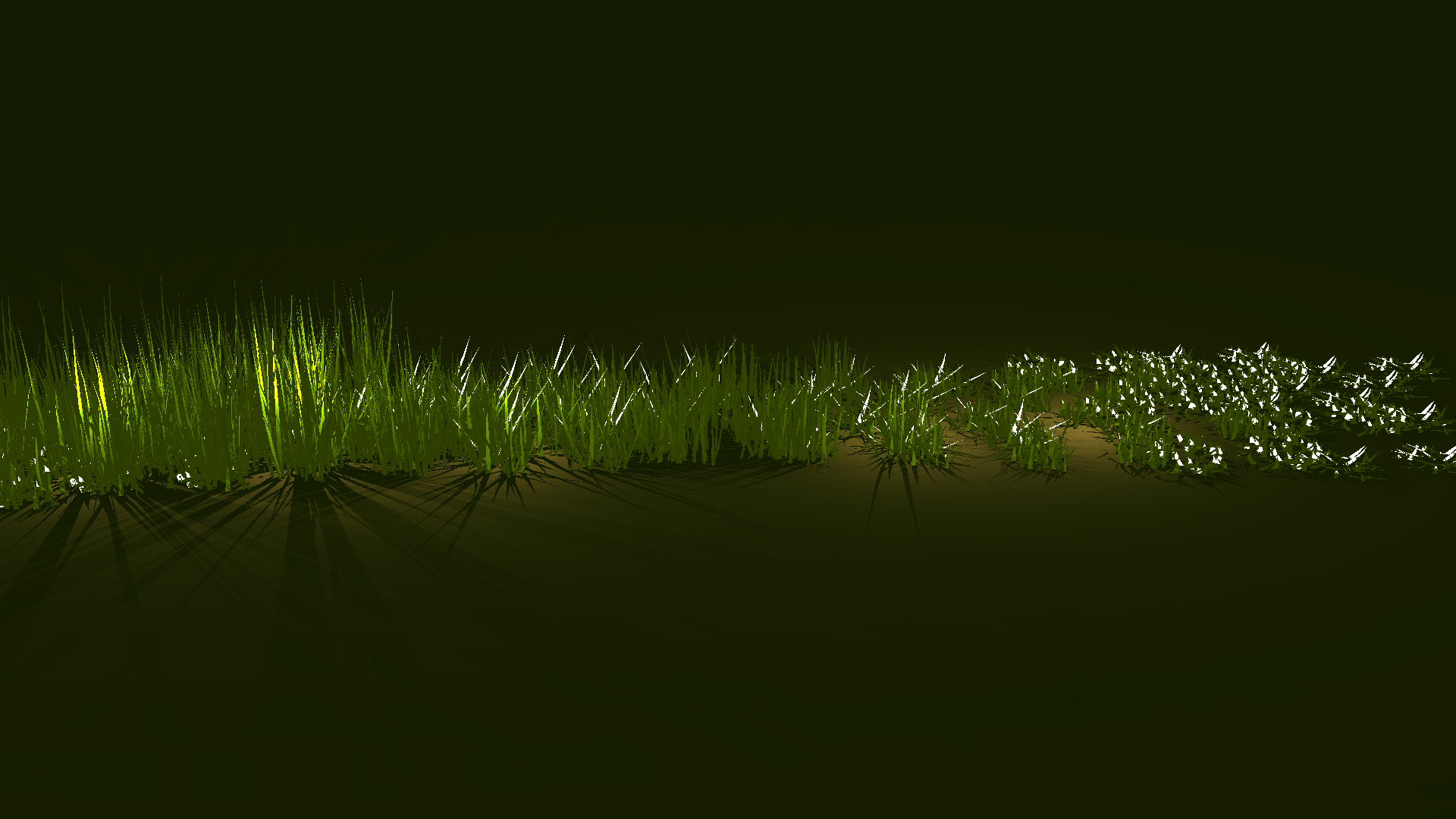

I think my only flaw in this homework is the white artifacts in the grass_desert scene rendering. I haven't determined the cause yet, but I will try to fix it in the future.
